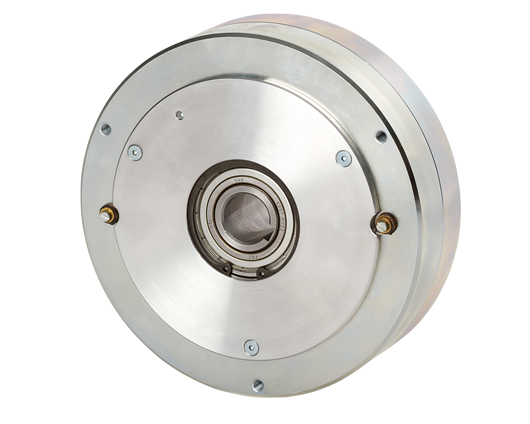

ELECTROMAGNETIC BRAKES AND CLUTCHES
POWDEREX
Powderex, Renova’s range of electromagnetic brakes and clutches, guarantees precision controlling of the braking torque independently of the speed.
POWDER BRAKES AND CLUTCHES
Magnetic powder brakes and clutches are ideal in the converting industry for printing machines, labelling and flexible packaging. The brakes are employed on unwinders and clutches on rewinders
Watch video
Designed for a long service life, Powderex brakes and clutches can be easily fitted on any converting machine.
The electromagnetic coil of the brake generates a variable and controlled magnetic field which directly modifies the magnetic powder viscosity that controls the torque transmission between the external and the internal rotors.
The device acts as a brake when the external rotor is fixed, otherwise it acts as a clutch.
Powderex has a wide range of sizes, offering solutions to all drive problems requiring torque between 3Nm and 170Nm. Available in standard version or equipped with radiator or with fan for high-power applications.
Why Powderex
a solution to all drive problems requiring torque between 3Nm and 170Nm
Compact size
low residual torque
No dust dispersion
high sensitivity
Soundless operating
Long life service
ELECTROMAGNETIC BRAKES AND CLUTCHES
WITH POWDEREX SAY STOP TO
POWDEREX models
POWDEREX
MAGNETIC POWDER BRAKES
DatasheetWide range of sizes available in the standard version, in the version with radiator or in the version with ventilator.
| PWX 003 B | PWX 006 B | PWX 012 B | PWX 035 B | PWX 065 B | PWX 080 B | PWX 120 B | PWX 170 B | |
| cont. heat dissipation |
50 W | 80 W | 100 W | 150 W | 200 W | 250 W | 400 W | 500 W |
| weight | 0,75 kg | 1,4 kg | 2,6 kg | 5,0 kg | 9,0 kg | 12,7 kg | 18 kg | 24 kg |
| brake with radiator |
PWX 003 BR | PWX 006 BR | PWX 012 BR | PWX 035 BR | PWX 065 BR | PWX 080 BR | PWX 120 BR | PWX 170 BR |
| cont. heat dissipation |
100 W | 160 W | 200 W | 280 W | 400 W | 500 W | 800 W | 1000 W |
| weight | 1,1 kg | 1,9 kg | 3,8 kg | 7,5 kg | 13,0 kg | 18,5 kg | 23 kg | 30 kg |
| brake with fan* |
PWX 003 BV | PWX 006 BV | PWX 012 BV | PWX 035 BV | PWX 065 BV | PWX 080 BV | PWX 120 BV | PWX 170 BV |
| cont. heat dissipation |
150 W | 300 W | 400 W | 600 W | 800 W | 1050 W | 1600 W | 2000 W |
| weight | 1,4 kg | 2,2 kg | 4,5 kg | 8,0 kg | 13,0 kg | 17,0 kg | 24 kg | 28 kg |
(* fan voltage: 24, 115 or 230 VAC)
POWDEREX
MAGNETIC POWDER CLUTCHES
DatasheetWide range of sizes available in the standard version or in the version with radiator.
| PWX 003 C | PWX 006 C | PWX 012 C | PWX 035 C | PWX 065 C | PWX 080 C | PWX 120 C | PWX 170 C | |
| cont. heat dissipation (500 rpm) |
80 W | 100 W | 120 W | 250 W | 280 W | 350 W | 800 W | 1000 W |
| cont. heat dissipation (1000 rpm) |
100 W | 120 W | 150 W | 250 W | 350 W | 550 W | 1000 W | 1250 W |
| weight | 0,8 kg | 1,5 kg | 2,8 kg | 5,2 kg | 9,4 kg | 13,3 kg | 18,9 kg | 24,8 kg |
| clutch with radiator |
PWX 003 CR | PWX 006 CR | PWX 012 CR | PWX 035 CR | PWX 065 CR | PWX 080 CR | PWX 120 CR | PWX 170 CR |
| cont. heat dissipation (500 rpm) |
250 W | 350 W | 440 W | 640 W | 960 W | 1200 W | 1600 W | 2200 W |
| cont. heat dissipation (1000 rpm) |
300 W | 400 W | 500 W | 800 W | 1200 W | 1550 W | 2000 W | 2750 W |
| weight | 1,2 kg | 2,0 kg | 4,0 kg | 7,7 kg | 13,4 kg | 19,0 kg | 23,7 kg | 28,8 kg |
